Product Overview

---

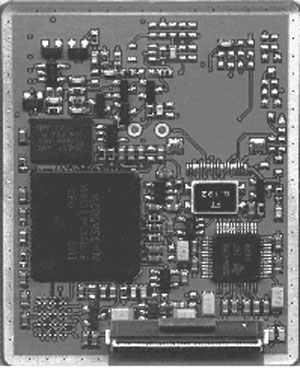

The DEU100/GP and /GM modules are voice security modules for Motorola Professional Radios GP140, GP328, HT750, PRO5150, GP338, HT1250, PRO7150, GP340, GP360, GP380, GP680, GM140, CDM750, PRO3100, GM160, CDM1250, PRO5100, GM338, GM340, GM360, GM380.

Radio firmware

The radio must have the proper radio firmware version in order the module to operate properly. Note that the radio firmware version is not the CPS software version. The version number is located on the back side of the radio chassis.

For 5 Tone radios (GP/GM 340, 360, 380) the firmware version must be R03.01.25 or higher.

For MDC radios (GP/GM 140,160, GP 328/338, HT/CDM…, PRO…)  the firmware version must be R05.00.03 or higher.

It is recommended the radio to be upgraded to the latest version available for the particular model.



General Specifications
Size (LxWxD)	45 х 54 х 5 mm
Operating Temperature	-30° to +60°C
Receive Secret /Clear	5 to 2000 mV P-P
Transmit Secret /Clear	5 to 2000 mV P-P
Supply Voltage	+3.3 V (for portable) or +5V (for mobile)
Current Drain	No more 30 mA
Width of Frequency band of output signal	2024 Hz
Subcarrier frequencies of output signal	1228, 1312, 1412, 1788, 1988 Hz
Frequency band of output signal at Subcarrier frequency 1228 Hz 1312 Hz 1412 Hz 1788 Hz 1988 Hz	_____________________________________216…2240 Hz _____________________________________300…2324 Hz _____________________________________400…2424 Hz _____________________________________776…2800 Hz 976…3000 Hz



Features/Options
Secret /Clear Switch Options	Available
Secret /Clear Indication	Available
Programming Method	via special  programming tool RDM9 – outside of a radio; via radio’s programming tool – inside of a radio; Over-The-Air-Rekeying (OTAR) (optional, for Secret/Digital Encryption Mode only)
Configuration Software	Config
Keyload Software	Keyloader (for Secret/Digital Encryption Mode only)



Security Specifications
Modes	Secret/Digital Encryption Mode Secret/Double Inversion Mode* Secret/Single Inversion Mode* Clear Mode
Encryption Algorithm	AES (Advanced Encryption Standard)
Availabled length of key	256 bit (more than 10^77 combinations)
Vocoder	MELP2400
Transmit Secret /Clear	Manual Select
Receive Secret /Clear	Programmabled Choise: Automatic or No
Max number of keys	16



Radio System Management (DS System) (optional, for Secret/Digital Encryption Mode only)
Signaling Method	DS-1200
PTT-ID (ANI)	5 digit, 00001 to 99999
Programming Feature Required Modem Keyload and Control Software OTAR (Rekey) Enable/Disable Radio (Restrict) Inventory (Check) Zeroize Listen (Spy)	CBR-DM OES Software Yes Yes, separately Transmit and Receive Mode Yes Yes Yes
